- CPU: 1x 10 Core E5-2670 V2 (25M Cache, 2.5 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 750Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
Tags: Máy chủ Dell , Máy chủ HP , Máy chủ IBM , Linh kiện server , Nguồn server HP , Nguồn Server IBM , Nguồn Server Dell , Card Raid Server , Card mạng server , Mainboard Server , Máy tính bộ Dell , Thiết bị mạng , Switch Cisco , Router Cisco , Firewall Cisco , Thiết bị lưu trữ , Bộ lưu điện , Tủ Rack - Tủ mạng , Cho thuê máy chủ , Cho thuê thiết bị mạng

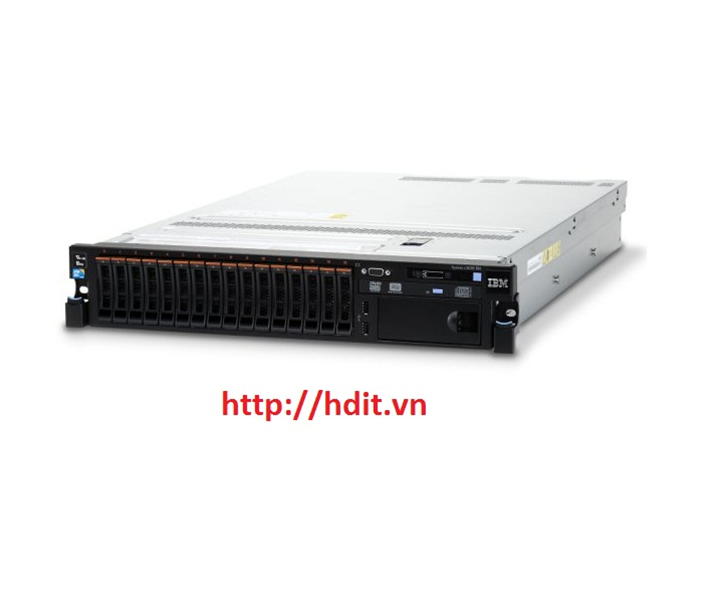

DESCRIPTION | SPECIFICATIONS |
---|---|
Form factor/height | 2U Rack |
Processor | Up to two 12-core Intel Xeon E5-2600 v2 series processors |
Cache | 30 MB per processor |
Memory | Up to 768 GB via 24 slots (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM) |
Media bays | Optional ODD and tape drive bay |
Disk bays | Sixteen 2.5-inch or six 3.5-inch HDDs or thirty-two 1.8-inch SSDs |
RAID support | Integrated 6 Gbps or new optional 12 Gbps* hardware RAID-0, -1, -10 with optional RAID-5, -50, -6, -60. |
Power supply | 1/2 redundant 550 W AC, 750 W AC, 900 W AC, or 750 W DC (model dependent) |
Hot-swap components | Power supplies, fan modules and hard disk drives |
Network interface controller (NIC) Trusted platform module (TPM) | 4 x 1 GbE (std.), 2 x 10 GbE Embedded Adapter (slotless opt.)/TPM |
PCIe 3.0 Expansion slots (x16/x8) | 4 - 6 PCIe ports or 4 PCI-X (CTO) or 2 double-width PCIe (for GPU) |
USB ports | 2 front/4 back/2 internal |
Maximum internal storage | Up to 25.6 TB (2.5-inch model) or 24 TB (3.5-inch model) SAS/SATA |
Energy-efficiency compliance† | 80 PLUS Platinum and ENERGY STAR (model dependent) Compliance |
Systems management | IMM2 with optional FoD remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director Active Energy Manager |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
Limited warranty | 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available |
- CPU: 1x 12 Core E5-2697 V2 (30M Cache, 2.7 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 900Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 12 Core E5-2695 V2 (30M Cache, 2.4 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 900Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 10 Core E5-2690 V2 (25M Cache, 3.0 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 900Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 10 Core E5-2680 V2 (25M Cache, 2.8 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 900Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 10 Core E5-2660 V2 (25M Cache, 2.2 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 750Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 8 Core E5-2650 V2 (20M Cache, 2.6 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 1GB RAID (0,1,510,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 750Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x 8 Core E5-2640 V2 (20M Cache, 2.0 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 512MB RAID (0,1,5,10,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 550Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
- CPU: 1x Six Core E5-2630 V2 (15M Cache, 2.6 GHz)
- RAM: IBM 8GB DDR3 1600Mhz ECC REG
- HDD: Option HDD SAS/SATA 2.5”
- DVD: Option
- RAID: M5110e with 512MB RAID (0,1,5,10,50)
- NIC: Quad port 1GB Gigabit Ethernet
- Power Supply: 1x 550Watts.
- Rail kit: Sliding Rails Rackmount 2U Kit
Hàng chính hãng, có đủ C/O và C/Q
