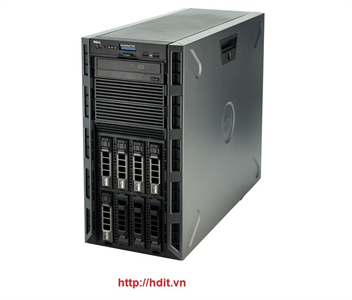

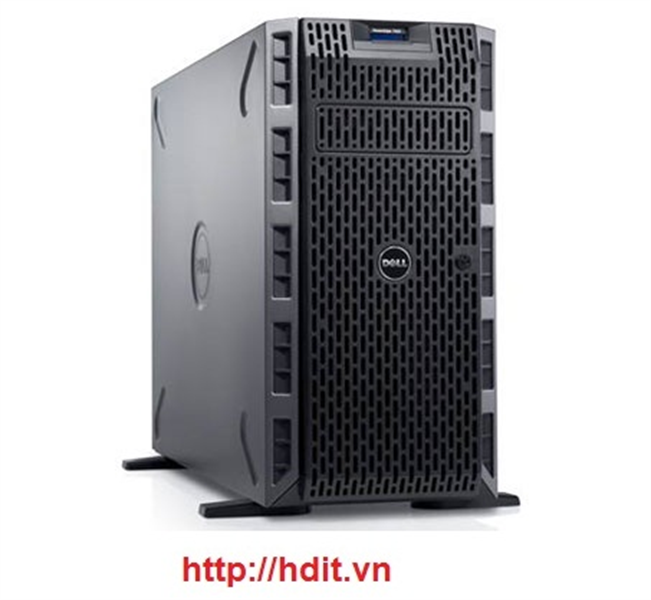

Dell PowerEdge T420 - E5-2430 Cache 15MB

Feature

PowerEdge T420 technical specification

Form factor

Tower (5U rackable)

Processors

Intel® Xeon® processor E5-2400 product family

Processor sockets

2

Internal  nterconnect

Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s

Cache

2.5MB per core; core options: 4, 6, 8

Chipset

Intel C600 series

Memory

Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB DDR3 up to 1600MHz

I/O slots

6 PCIe slots:

· Two x16 slots with x16 bandwidth, full-length, full-height

· Two x8 slots with x4 bandwidth, half-length, full-height

· One x8 slot with x4 bandwidth, full-length, full-height

· One x8 slot with x1 bandwidth, full-length, full-height

GPU options

One NVIDIA® Quadro® 6000 graphics card or up to two NVIDIA Quadro 4000 graphics cards

RAID controller

Drive bays

Choose from four 3.5” cabled, eight 3.5” hot-plug, or sixteen 2.5” hot-plug drive bays

Maximum internal storage1

Up to 32TB

Hard drives

Hot-plug hard drive options:       Cabled hard drive options:

.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD          3.5” SATA, nearline SAS, SAS (15K)

3.5” SATA, nearline SAS, SAS (15K

Self-encrypting drives available

Embedded NIC

Broadcom® 5720 GbE Dual Port 1Gb LOM

I/O adapter options

wer supply

Platinumefficiency, cabledhot-plug, redundantsupply495W, 750W, 1100W power supplies  Auto-ranging power supplies

Availability

Optional high-efficiency,information tag;redundantmemory; supplies;interactive drivescreen; extended thermal support; redundant

STAR® compliant; switch independent partitioning

Remote management

Basic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise(upgrade option), 8GB or 16GB vFlash media (upgrade options)

Systems management

IPMI 2.0 compliant

OpenManage™ Essentials and Dell Management Console

OpenManage Power Center

Dell OpenManage Connections:

· OpenManage Integration Suite for Microsoft® System Center

· Dell plug-in for VMware® vCenter®

· HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management (NSM)

Rack support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mountingin 4-post threaded hole racks, with support for optional tool-less cable management arm

Operating systems

Microsoft Windows Server® 2008 R2 SP1, x64 (includes Hyper-V™ v2)

Microsoft Windows® Small Business Server 2011

SUSE® Linux® Enterprise Server

Red Hat® Enterprise Linux

Optional embedded hypervisors:

Citrix® XenServer™

VMware vSphere™

For more information on the specific versions and additions, visitError! Hyperlink reference not valid.Error! Hyperlink reference not valid.
