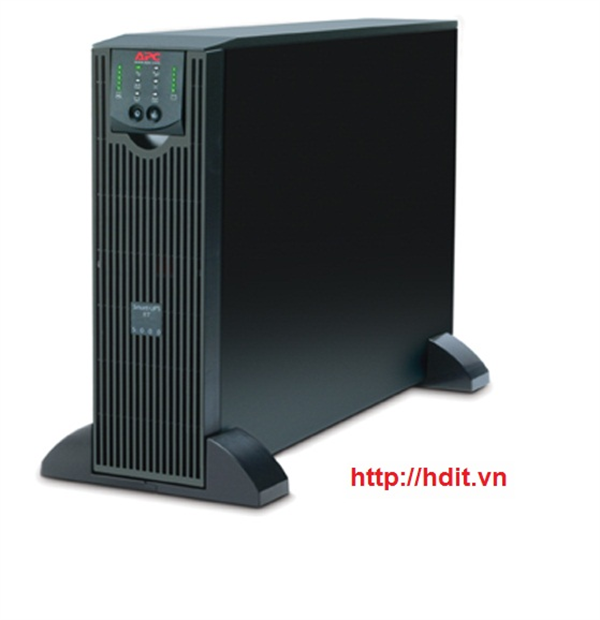

SURTD5000XLI - Bộ lưu điện APC Smart-UPS RT 5000VA 230V
- Model: SURTD5000XLI
- APC Smart-UPS On-Line, 3500 Watts / 5000 VA,Input 230V / Output 230V, Interface Port RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, Extended runtime model, Rack Height 3 U
-
Giá: 40,309,000 VNĐ
-
Bảo hành: 24 tháng
-
Trong kho: có hàng
-
Tình trạng: Mới 100%
-
Giá trên chưa có VAT
Tag: Máy chủ Dell , Máy chủ HP , Máy chủ IBM , Linh kiện server , Nguồn server HP , Nguồn Server IBM , Nguồn Server Dell , Card Raid Server , Card mạng server , Mainboard Server , Máy tính bộ Dell , Thiết bị mạng , Switch Cisco , Router Cisco , Firewall Cisco , Thiết bị lưu trữ , Bộ lưu điện , Tủ Rack - Tủ mạng , Cho thuê máy chủ , Cho thuê thiết bị mạng
Output
Output Power Capacity
3500 Watts / 5000 VA
Max Configurable Power
3500 Watts / 5000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.0%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave

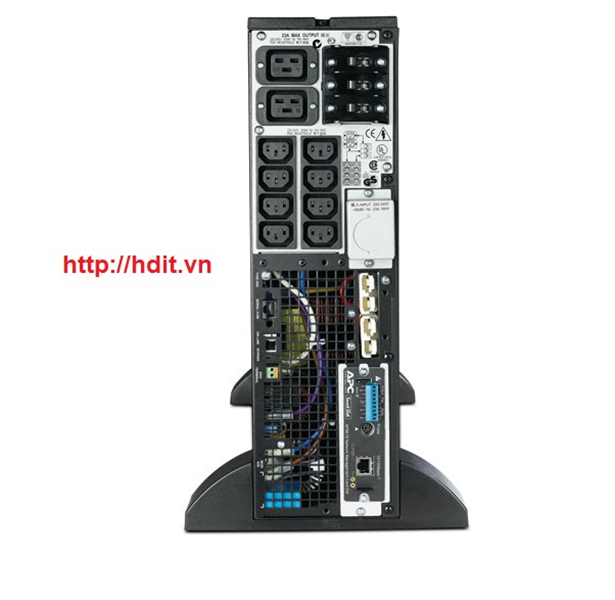

Output Connections
| (8) IEC 320 C13 |  |
| (2) IEC 320 C19 |  |
| (4) IEC Jumpers |
Bypass
Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
| Hard Wire 3-wire |
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220, 240
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.50 hour(s)
Replacement Battery
RBC™ Quantity
1
Extended Run Options
Runtime Graph
| Curve | Part Number(s) |
| A | SURTD5000XLI |
| B | SURTD5000XLI + (1)SURT192XLBP |
| C | SURTD5000XLI + (2)SURT192XLBP |
| D | SURTD5000XLI + (3)SURT192XLBP |
| E | SURTD5000XLI + (4)SURT192XLBP |
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot
Pre-Installed SmartSlot™ Cards
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
480 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

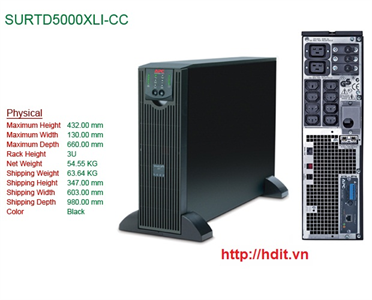

Physical
Maximum Height
432.00 mm
Maximum Width
130.00 mm
Maximum Depth
660.00 mm
Rack Height
3U
Net Weight
54.55 KG
Shipping Weight
63.64 KG
Shipping Height
347.00 mm
Shipping Width
603.00 mm
Shipping Depth
980.00 mm
Color
Black
Units per Pallet
6.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
1057.00 BTU/hr
Conformance
Regulatory Approvals
C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, UL 1778, VDE
Standard Warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available
Sustainable Offer Status
RoHS
Compliant
